Field Node. Considered in detail.
Field interface enclosure. Explore the standalone CAD and its design scope.
Retained development study. Dimensions, names and checks belong to this revision—not automatically to the retrofit-only product. Manufactured tank shells are deferred. No installation instruction, certification or manufacturing release is represented.
The source reasoning
Why this detail was investigated.
The enclosure repeats the family corner radii, cover seam and recessed working-surface color. Two closed entry envelopes sit below the identity band. 190 x 280 x 85 mm study. Field electronics, selected entries and site configuration remain open.
Read the research and limits
Research record
The detail behind
the study.
Source-linked work for this revision. Reported checks describe the stated model or test; physical qualification and applicability to the current retrofit remain separate.

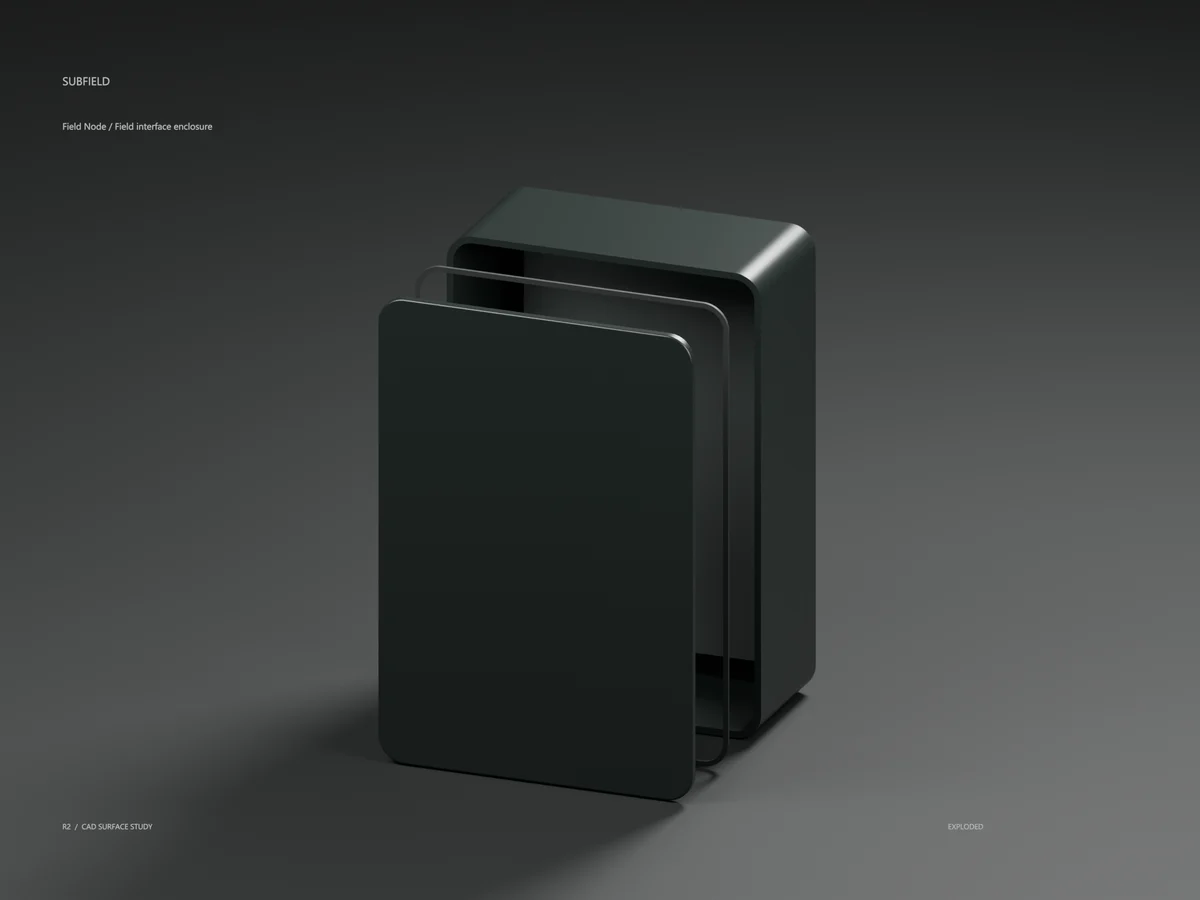

Field Node
New dimensional packaging study. Internal supplier hardware is not represented.
Flat seal, attachment, thermal behavior and electrical isolation are unqualified.
Surface logo and Fieldline are finish artwork, not structural geometry.
Original R1 source scene · Render record
Source and revision record
Source: surface-family-r2/index.html#field-node
Source SHA-256: e0de4388c6e61692f30f8e8998fde9682cbd40d90304af4be6880722e4ea87ba
Geometry and images describe this development revision. Current product ratings and manufacturing release require separate qualification.
