Core. Considered in detail.
Exterior control panel. Explore the standalone CAD and its design scope.
Retained development study. Dimensions, names and checks belong to this revision—not automatically to the retrofit-only product. Manufactured tank shells are deferred. No installation instruction, certification or manufacturing release is represented.
The source reasoning
Why this detail was investigated.

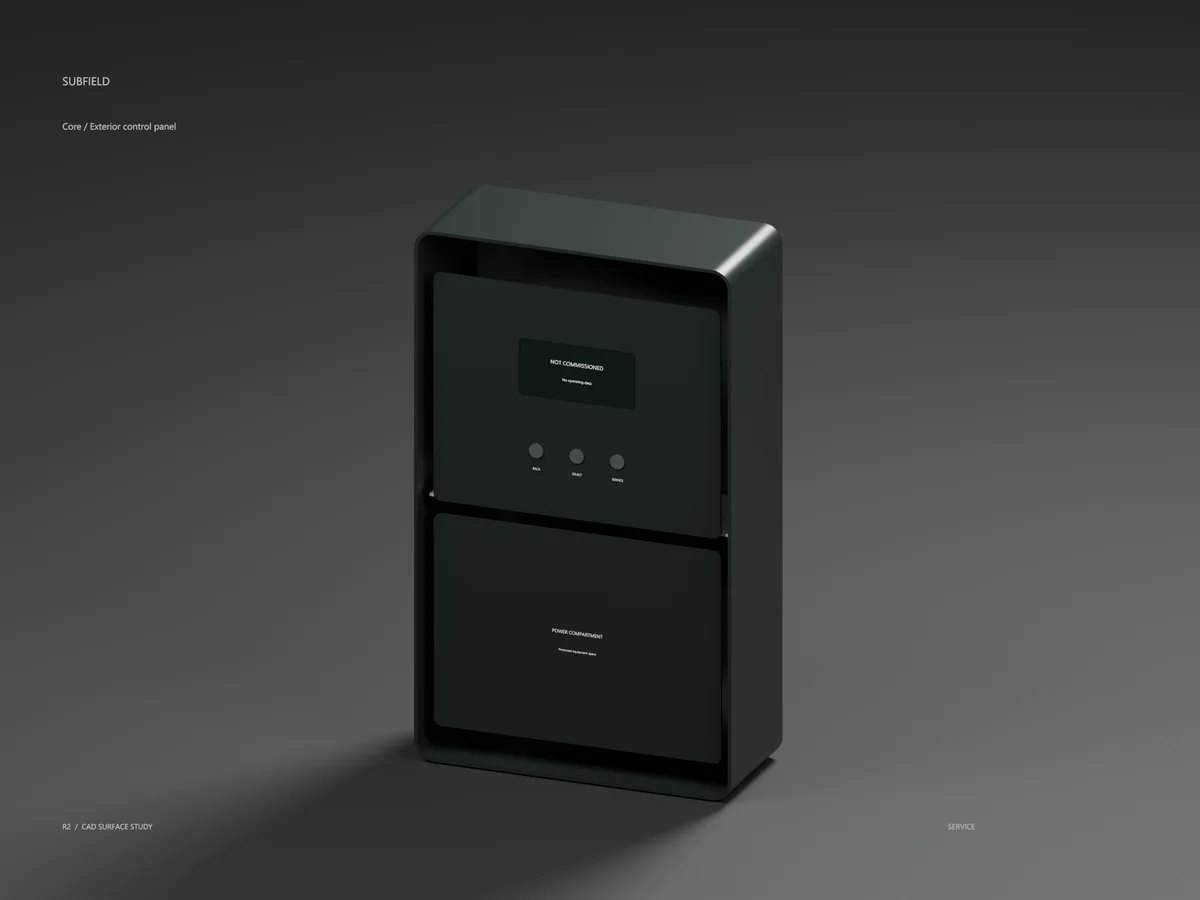

Chalk weather cover over a Graphite enclosure. The service view reveals a stationary interface faceplate above a separate power-compartment cover. 360 x 600 x 150 mm enclosure study. Supplier electronics, seals and attachment details remain open.
Read the research and limits
Research record
The detail behind
the study.
Source-linked work for this revision. Reported checks describe the stated model or test; physical qualification and applicability to the current retrofit remain separate.
Core
New dimensional packaging study. Internal supplier hardware is not represented.
Flat seal, attachment, thermal behavior and electrical isolation are unqualified.
Surface logo and Fieldline are finish artwork, not structural geometry.
Original R1 source scene · Render record
Source and revision record
Source: surface-family-r2/index.html#core
Source SHA-256: e0de4388c6e61692f30f8e8998fde9682cbd40d90304af4be6880722e4ea87ba
Geometry and images describe this development revision. Current product ratings and manufacturing release require separate qualification.
